Specifications*

Capacity @ 24” Load Center
4000 lbs
Lift Height (standard)
96 In .
Lift Height (optional)
72 In., 120 In.
Overall Height
98.5 In.
Mounted Overhang
64 In.
Width
100 In.
Weight (Ready to Operate)
3900 lbs.
Mast Tilt
8°<---->
Side Shift (optional)
5 In.
Frame Opening
60 In.
Fork Travel
30 In.
Drive Tires (standard)
(2) 31 x 15.5 x 15 Industrial Bar Tread Tires
Drive Tires (optional)
(2) 31 x 15.5 x 15 Agricultural Bar Tread Tires
(2) 31 x 15.5 x 15 Sand / Turf Tread Tires
Transmission
Hydrostatic Drive
Engine
37 HP Water Cooled Diesel
Max Travel Speed
9 Mph
Nav-Reach (optional)
Yes
Jumbo Caster (optional)
Yes


Options

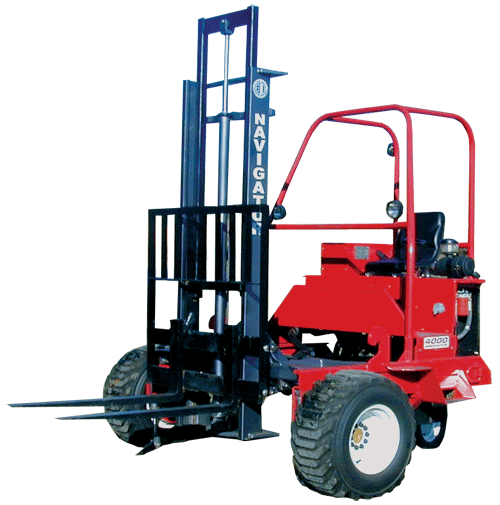

*Specifications are based on standard model machines. The above specifications are not binding. Chrisman Manufacturing reserves the right to make changes and/or improvements without prior notice. Shown with 72 single stage mast in above picture.

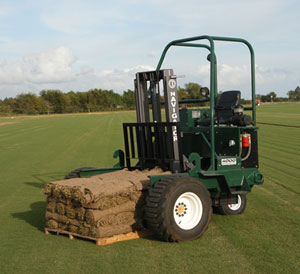

The Navigator RT-4000 has become a known favorite in the industry. The RT - 4000 is time tested and by far one of the quickest, lightest, most maneuverability operator friendly two wheel drive forklifts in its class.

While RT-4000 is one of the toughest most reliable units on the market, it still remains light enough to mount on most single axle trucks. With new features which include a powerful rubber mounted Kubota engine, improved hydraulic control assembly and wider foot steps.


Click here for more information and to request a free brochure.
