Capacity @ 24” Load Center
5000 lbs
Lift Height (standard)
120 In.
Lift Height (optional)
96 In., 144 In.
Overall Height
104.5 In.
Mounted Overhang
75 In.
100 In.
Weight (Ready to Operate)
5100 Lbs.
Mast Tilt
8° <---->
Side Shift
5 In.
Frame Opening
60 In.
Fork Travel
30 In.
Drive Tires (standard)
(3) 31 x 15.5 x 15
Industrial Bar Tread Tires
Drive Tires (optional)
(3) 31 x 15.5 x 15
Agricultural Bar Tread Tires
(3) 31 x 15.5 x 15
Sand / Turf Tread Tires
Hydrostatic Drive
60 HP Water Cooled Diesel
Max Travel Speed
8 Mph
Nav-Reach (optional) Yes
Automotive Control (optional) Yes

Options RT5000

*Specifications are based on standard model machines. The above specifications are not binding. Chrisman Manufacturing reserves the right to make changes and/or improvements without prior notice.

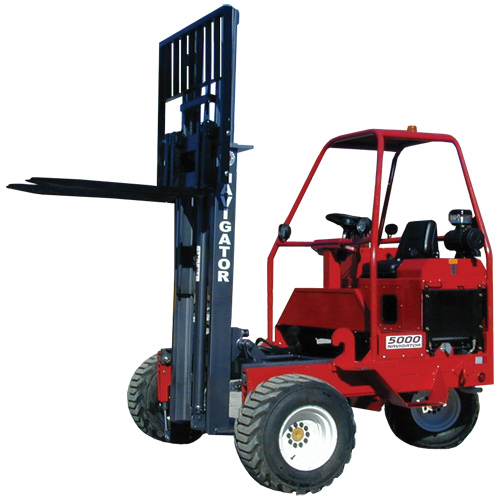

The RT-5000 is all wheel drive with traction lock and a highly maneuverable rear wheel steer. The time tested rugged design offers a low operating weight that is packed with features and improvements The powerful RT-5000 has a total of 18 inches of ground clearance and it is perfect for the more demanding user. Also the RT-5000 is capable of mounting on most single axle trucks.
