Capacity @ 24” Load Center
5500 Lbs
Lift Height (standard)
144 In.
Lift Height (optional)
96 In., 120 In., 156 In.
Overall Height
104.5 In.
Mounted Overhang
75 In.
100 in.
Weight (Ready to Operate)
5800 lbs.
Mast Tilt
Side Shift
5 In.
Frame Opening
60 In.
Fork Travel
30 In.
Drive Tires (standard)
(3) 31 x 15.5 x 15 Industrial Bar Tread Tires
Drive Tires (optional)
(3) 31 x 15.5 x 15 Agricultural Bar Tread Tires
(3) 31 x 15.5 x 15 Sand / Turf Tread Tires
Hydrostatic Drive
60 HP Water Cooled Diesel
Max Travel Speed
9 Mph
Nav-Reach (optional)
Automotive Control (optional)
Jumbo Caster (optional)

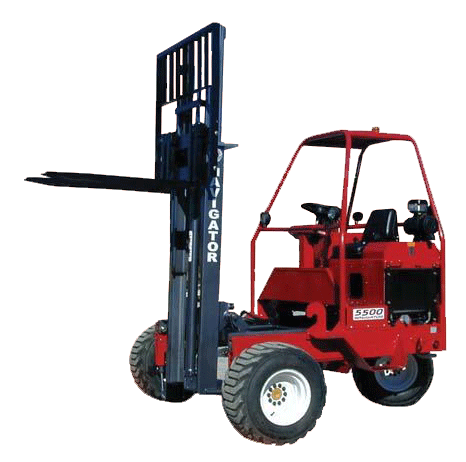

Options RT5500 Lumber Series

*Specifications are based on standard model machines. The above specifications are not binding. Chrisman Manufacturing reserves the right to make changes and/or improvements without prior notice.

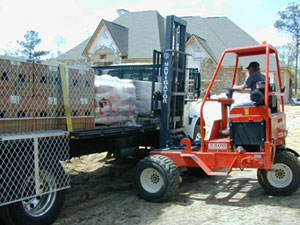

The RT-5500 has all the great features of the Rt-5000 like all wheel drive with traction lock and a highly maneuverable rear wheel steer. A time tested rugged design that offers a low operating weight that is packed with features and improvements. The powerful RT-5500 also has a total of 18 inches of ground clearance and is perfect for the more demanding user. With a integrated counter weights add strength and capacity. Equipped with a 144 lift height as standard equipment.

Click here for more information and to request a free brochure.
